MINI TACT SWITCH

  • 4.5x4.5mm Tact Switch
4.5x4.5mm Tact Switch

4.5x4.5mm Tact Switch

4.5x4.5mm Tact Switch

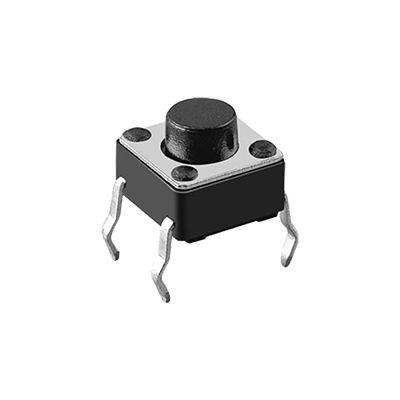

4.5x4.5mm Tact Switch(图1)

Part #:FW4545

Item Name:DIP typ tact switch

Size:4.5×4.5×H/ H=3.8/4.3/4.5/5/5.5/6/7mm

Actuation force:100gf/160gf/260gf

Lifespan:1M/2M/5M cycles

Temperature

-20℃to+70℃

Rated current

50mA.12V DC

Insulation resistance

100mΩ min.100V DC

Withstanding voltage

250V AC for 1 min

Contact resistance

100mΩ max

travel

0.25±0.1mm

height

3.8/4.3/4.5/5/5.5/6/7mm

Operation force

100gf/160gf/260gf

4.5x4.5mm Tact Switch(图2)
