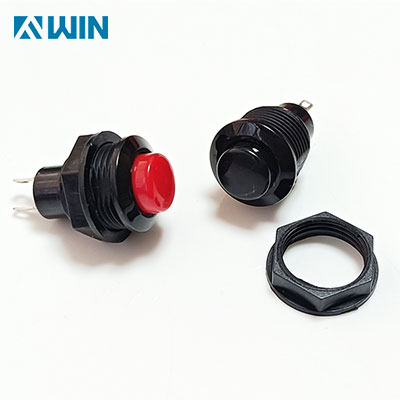

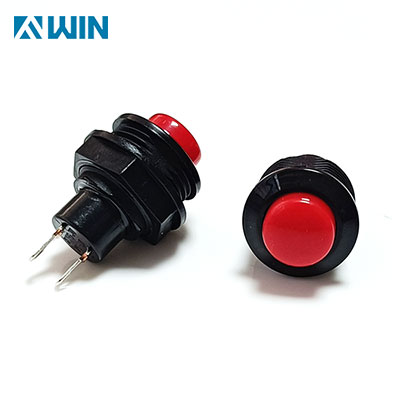

Momentary Plastic Push Button Switches


Rating:3A 125VAC, 1.5A 250VAC(PB-01)

          6A 125VAC, 3A 250VAC(PB-02)

Contact resistance:50mΩ(max)

Insulation resistance:DC500V 100MΩ(min)

Withstanding voltage:1000VA C for 1 minute

Life:10,000 cycles

Total travel:2.0±0.4mm

Operation force:150±100gf

Mechanical life:50,000 cycles Min

Temperature:0℃~85℃

Function:OFF-(ON)


SPST, push ON

Optional button color;R=red,B=black,G=green

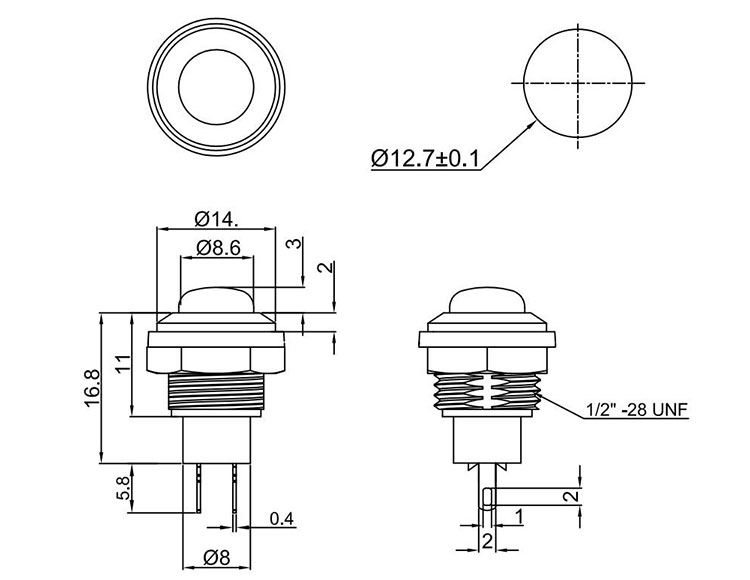

Panel cutout : diameter.16 for PB-02

Metal or plastic Bezel

Hardware accessories supplied
