ILLUMINATED TACT SWITCH
Illuminated Right Angle inbuilt LED Tact Switch
illuminated Right Angle inbuilt LED Tact Switches
This is a tiny illuiminated tact switch with built in LED light,it has right angle type terminal and colorful Lamp,the cap model is "T",this right-angled led tact switch offers with a variety of LED colors selection,and now,the TS20-00TWR is widely usde for smoke detector,if our present cap cann't meet your requirement,we accept ODM/OEM service for you.
You can customized your desired caps or symbols.
Brand:FVWIN
Model:TS20-00TWR
Max current: 50mA
Max voltage: 12V DC
Dielectric voltage: 250V AC for 1 minute
Contact resistance: 100mΩ max (initial)
Insulation resistance: 100MΩ min
Operating force: 250 ±50gf
Total travel: 0.25 ±0.1mm
Life cycle:500,000 cycles min
Function: momentary
· Rated up to 500,000 electrical life cycles
· Low or high intensity LED lights available in 6 single color options
· Integrated super-bright LED
· Reflow or wave solder compatible designs
· Tactile and audible feedback

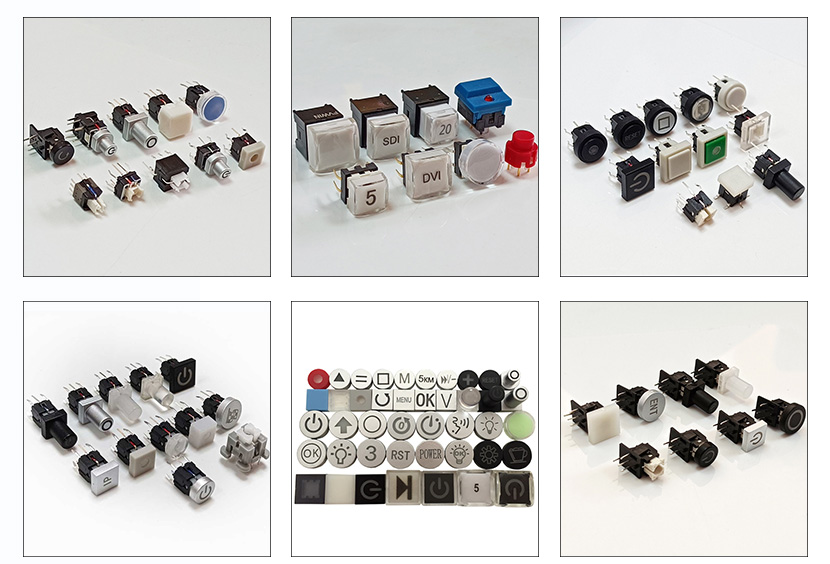

· Wide range of caps available
