Illuminated Light Right Angle Tact Switch

illuminated Right Angle inbuilt LED Tact Switches

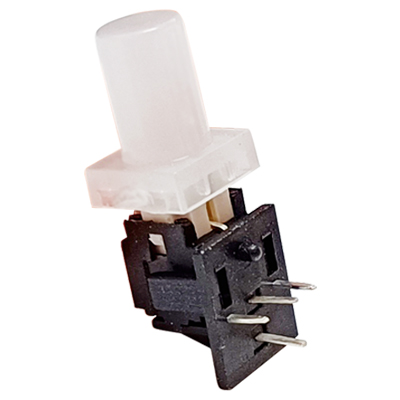

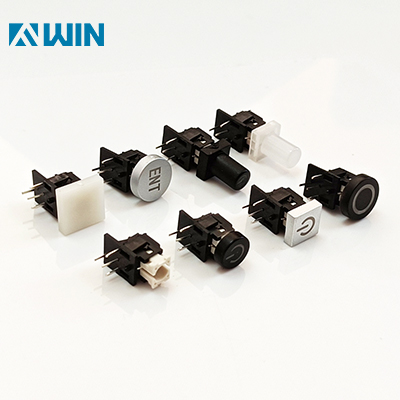

This is 90 degree LED button tact switch comes with 7.6*8.7mm and 12mm height,the illuminated tact switch is built into multicolor LED light,it can be matched with the caps for TS8 and TS9 series led tact switch;the right-angle illuminated tactile switch offers six color LEDs and multiple bi-color combinations,different cap and customized legends will enhance the size of illumination.

The TS20 series characters a metal dome contact that offers crisp audible feedback,and positive guide the circuit transfers,ensure the led tact switches’ high reliability and sensitivity as well as promise the 500,000 cycles long life expectancy.

• Model:TS20-0000X

• Electrical rating: 50 mA @ 12 VDC

• Life expectancy: 500,000 cycles

• Contact resistance: 100 mΩ max

• Insulation resistance: 100 MΩ @ 500 VDC

• Dielectric strength: 500 VAC for 1 minute

• Operating temperature: -40°C to +85°C

• Operating force: 160 gf/ 250gf

• Travel: 0.25 mm

• Function: SPST, off-(on), momentary

• LED colors:Available with red,blue,green,white,orange,bi-color LED Colors,

• Symbols: can be customized

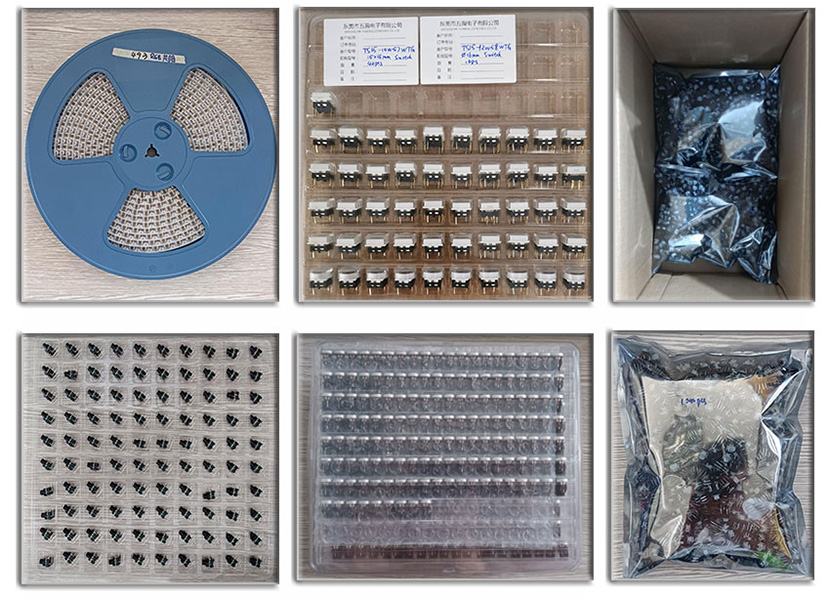

1. PE bag/anti-static bag for no engraved cap type

2. Reel packing for SMD type led tact switch

3. Skin packing for engraved cap and TS15 series illuminated push button

There has DHL/TNT/FedEx/UPS and SF shipment methods

We support T/T,Paypal and other payment ways.

1. Ten years factory manufacturing experience

2. Positive feedback

3. Support to custom-made,because of our many research and development employees

4. Strictest quality control
