ILLUMINATED TACT SWITCH

  • Reset Illuminated Right Angle Tact Switch
Reset Illuminated Right Angle Tact Switch

Reset Illuminated Right Angle Tact Switch

illuminated Right Angle Tact Switches With Circle Cap

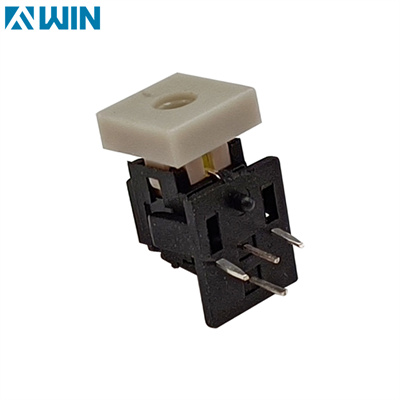

Reset Illuminated Right Angle Tact Switch(图1)

The TS20 series of right-angle illuminated tact switches are available in many different single LED indicators and dual color choices ,and please keep in mind the led lights are independent from the switching function, when you solder it on your product.

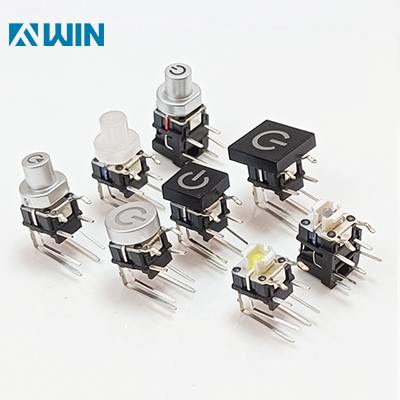

Reset Illuminated Right Angle Tact Switch(图2)

Electrical rating

 50 mA @ 12 VDC

Contact resistance

100 mΩ max

Operating force

160/250gf
LED colorsred,green,white,yellow,blue and bi-colors
ModelTS20-001WR

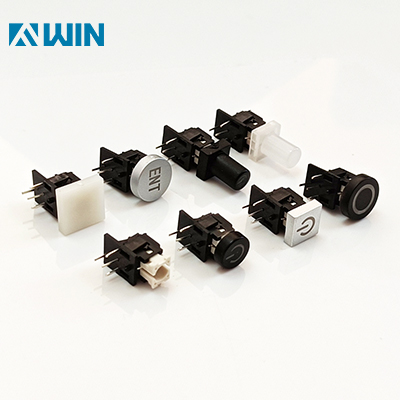

Reset Illuminated Right Angle Tact Switch(图3)

Reset Illuminated Right Angle Tact Switch(图4)      Reset Illuminated Right Angle Tact Switch(图5)
