ILLUMINATED TACT SWITCH

12V LED Tact Switch 6*6

View PDF materials

Momentary LED Tact Button Switch illuminated(图1)

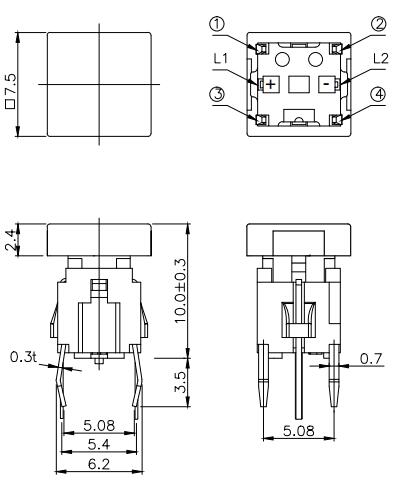

This is SPST NO illuminated tact switch with 7.5 square clear knob,

The TS9 series tact switch offers six illumination colors plus many bicolor options in a through hole design. It is SPST, momentary function, and 160 gf operating force. This tact switch has an electrical rating of 50 mA at 12 VDC and a travel of 0.20 mm.

Brand:FVWIN

Model:TS9-001WX

Tactile Switch Size:6*6*9mm

Product Type: Tact Switch

Function: Momentary

LED Color:Red/Blue/Green/White/Orange/Bi-color

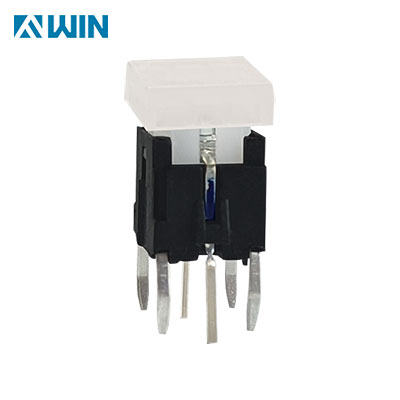

Momentary LED Tact Button Switch illuminated(图2)

illuminated Light Switch

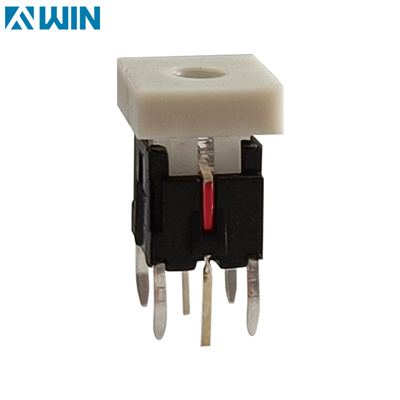

Momentary LED Tact Button Switch illuminated(图4)

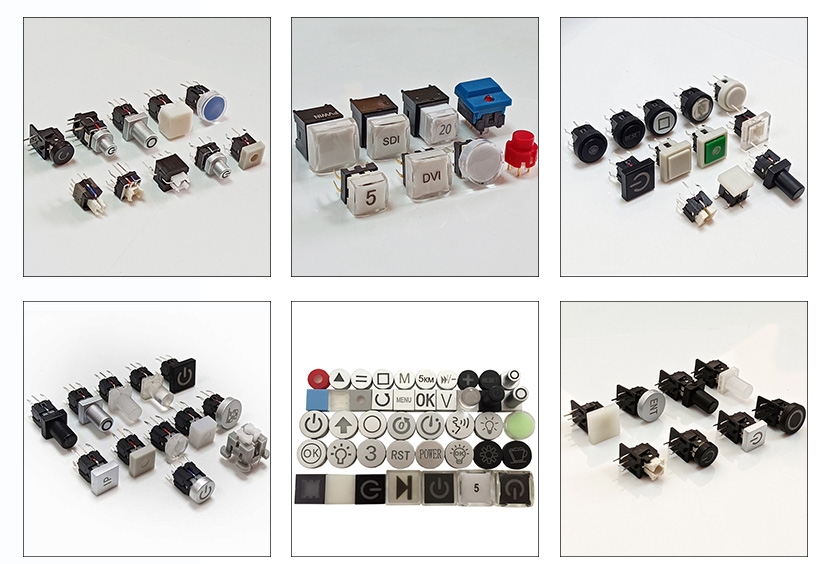

FVWIN ELECTRONICS’ s hot selling items has tact switch,push button switch,rocker switch,slide switch,toggle switch,AC socket and audio XLR socket;it provides with led illuminated for tact switch and push buttons,multiple size and specifications options.

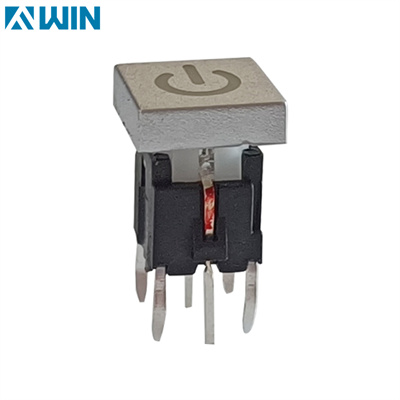

Momentary LED Tact Button Switch illuminated(图5)
