ILLUMINATED TACT SWITCH

  • SPST LED Tact Switch
SPST LED Tact Switch

SPST LED Tact Switch

SPST LED Tact Switch(图1)TS8 series illuminated tact switch.pdf

6*6mm Through Hole Micro Push Button with LED Indication

Through Hole Micro Push Button with LED Indication(图1)

This illuminated tact switch is a through hole mount switch that delivers six LED illumination in red,blue,green,white,yellow, pure green.

The bi-color LED is available ;Cap options are offered,welcome to customized the engraved logo on the cap.

Brand:FVWIN

Model:TS8-00TAX1

Rating: DC 12V 50mA

Total Travel: 0.25+/-0.1mm

Terminal: SMD,Through-in

Tactile Switch Size:6*6*7mm

LED Color:Red/Blue/Green/White/Orange/Bi-color

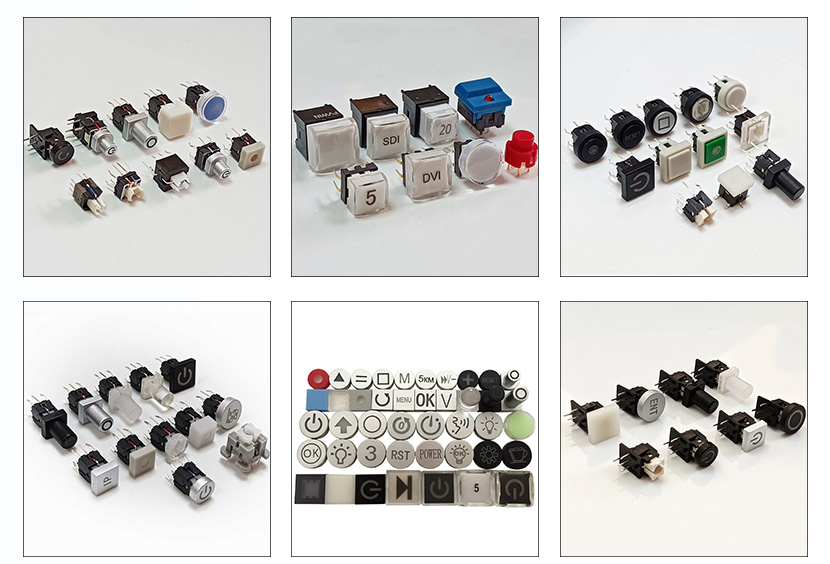

Cap:Square or round

Through Hole Micro Push Button with LED Indication(图2)

6x6 Tact Switch With LED

Through Hole Micro Push Button with LED Indication(图4)

Through Hole Micro Push Button with LED Indication(图5)

Through Hole Micro Push Button with LED Indication(图6)

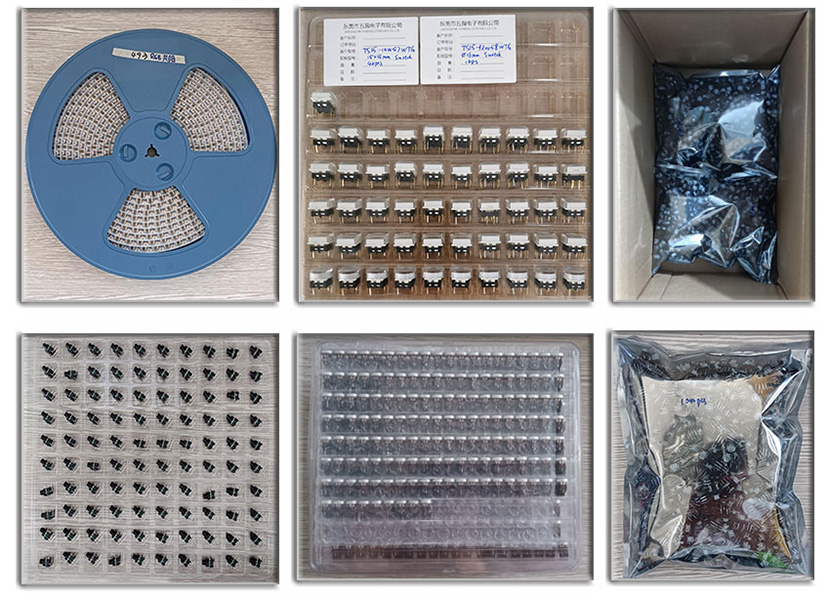

1. 1000pcs for PE bag,it’s packed for no led type or with led and no laser logo cap.

2. Tray package for engraved graphics,200pcs for each tray.

3. Reel packing for surface mount type,2000pcs for each reel

Through Hole Micro Push Button with LED Indication(图7)

Through Hole Micro Push Button with LED Indication(图8)

Founded in 2013, FVWIN has a rich product category applying multiple markets, including medical, military, automotive, consumer, and professional audio& video. We’ve developed expertise in research, development, design, and manufacturing the illuminated tact switch,illuminated push button switch,toggle switch,rocker switch and slide switch etc.as well as powerful strategic alignments. As a result, FVWIN is uniquely positioned to understand today’s increasingly complex marketplace while successfully anticipating the future.

Our commitment to innovation, quality, and customer service has led to FVWIN’s steady growth. Today we’re a global presence in the electronics switches industry with R&D, design, manufacturing, and sales facilities across Shenzhen, Hengyang.

Through Hole Micro Push Button with LED Indication(图9)
