ILLUMINATED TACT SWITCH

LED-illuminated Tact Switches Button With Cap

View PDF materials

LED-illuminated Tact Switches Button With Cap(图1) TS8 series illuminated tact switch.pdf

Normally Open LED Intergrated Tact Switches Button

LED-illuminated Tact Switches Button With Cap(图1)

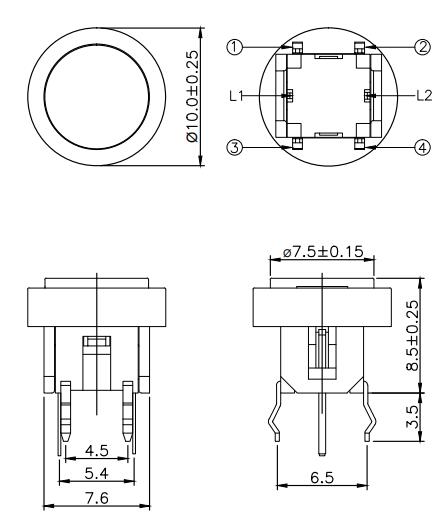

This's outline size 10mm illuminated tactile switch with through hole type,6x6mm body, 6 pins with LED light indicator,it has black 10MM frame and 7.5MM cap with hole,the light transmit the lighting from the hole,

Brand:FVWIN

Model:TS8-3B4BX

Rating: DC 12V 50mA

Total Travel: 0.25+/-0.1mm

Terminal: SMD,Through-in

Tactile Switch Size:6*6*7mm

LED Color:Red/Blue/Green/White/Orange/Bi-color

Cap:Square or round

LED-illuminated Tact Switches Button With Cap(图2)

1. The LED indicator with low or high intensity and it’s available in six colors options as well as many bi-color combinations

2. Integrated LED Tact switch save the PCB mounting space

3. Tactile and audible feedback

4. Engraved caps highlight the effect of illumination

5. Cap enhance and gather the area of the illumination

LED-illuminated Tact Switches Button With Cap(图3)

LED Intergrated Tact Switch Button

LED-illuminated Tact Switches Button With Cap(图5)

LED-illuminated Tact Switches Button With Cap(图6)

LED-illuminated Tact Switches Button With Cap(图5)

The FVWIN company was founded in 2013 by Andy, our illuminated tact switch,illuminated push button and other switches are widely used to the telecom and broadcast industries.

FVWIN illuminated tact switch are designed with a careful mix of customer suggestions, application knowledge, and the need to balance value with ease-of-use. In addition, all FVWIN switches products are put through rigorous quality control to ensure compliance to global RoHS standards.
