ILLUMINATED TACT SWITCH

Illuminated Tact Switch With Power Cap

View PDF materials

illuminated Tact Switches With Laser Power Logo Cap

illuminated Tact Switch With Power Cap(图1)

it's through hole LED-illuminated tact switch with 6mmx6mm mini base,and there is 10mm black round frame with 7.5mm round key cap button,the top from the base bottom total height is 8.5MM.

if you wanna engrave any legends on the cap,we also can make it,we also has bi-color LEDs for the TS8 illuminated tactile switch.

The black and silver engraved cap is common type.

illuminated Tact Switch With Power Cap(图2)

Product Name:	Tact Switch Series
Rating:	DC 12V 50mA Max
Contact Resistance:	≤100mΩ
Insulation Resistance:	≥100MΩ
Travel:	0.25±0.1mm
Operating Force:	160gf±50gf, 250gf±50gf
Lifetime:	50,000cycles or 100,000cycels or 500,000cycles
Material:	NYLON/PBT/LCP/PA66/Copper
MOQ:	1500Pcs
Packing:	Bag Packing or Reel&tape Packing

illuminated Tact Switch With Power Cap(图3)

Round 10mm LED Tact switch

illuminated Tact Switch With Power Cap(图5)

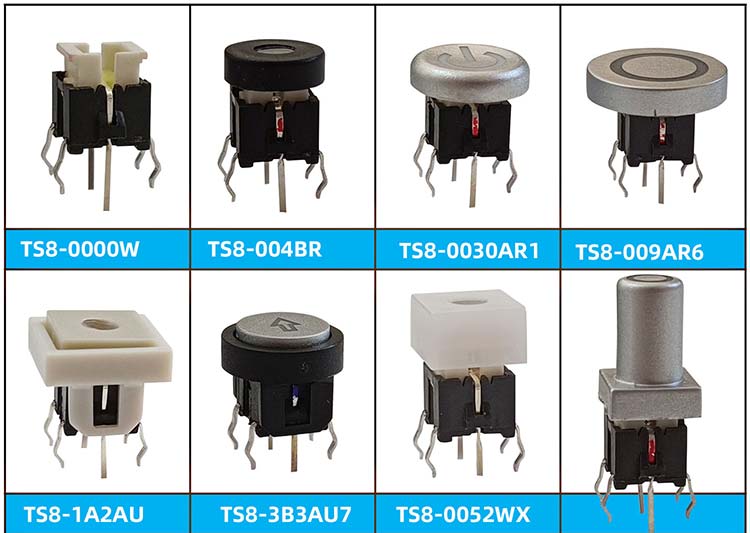

TS8 series illuminated tact switches

illuminated Tact Switch With Laser Power Logo Cap(图2)

illuminated Tact Switch With Power Cap(图7)

A broad applications for control and automation,embedded system design,measurement devices,micro controllers,mixer,vision processors as well as computer vision solutions

illuminated Tact Switch With Power Cap(图8)

ELECTRONICS CO., LTD. is one of the leading Illuminated Tact Switches | push button switch manufacturers based in Dongguan since 2013

Annual capacity of 100 million pieces with 100 employees,Fvwin's tact switch is RoHS compliant, also made with high-end materials. In addition with ISO 9001 certified push button switch and more. Quality Assured.
