ILLUMINATED TACT SWITCH
Illuminated Momentary Tact Switch

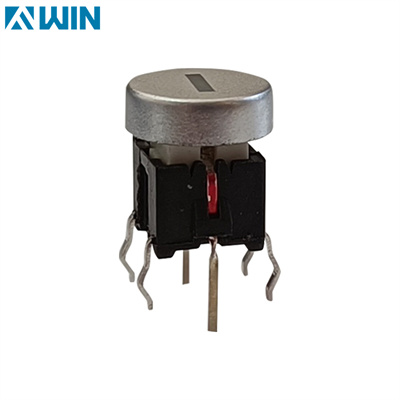

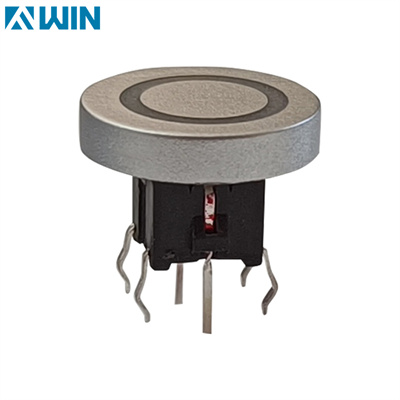

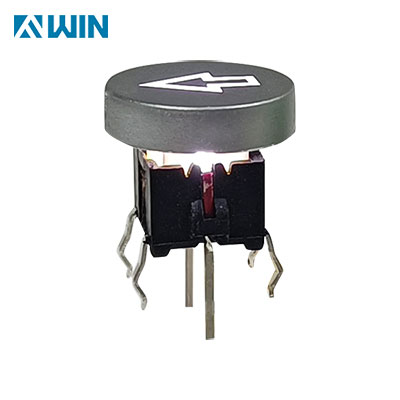

Illuminated Momentary Tact Switch With Laser Logo Tactile Cap
This is 6x6x7mm tiny led illuminated tactile switch with φ10mm circle engraved icon cap,the laser logo is low cost than silk print and the illumination effect is similar with it.
The tact switches include an LED indicator,it’s available in low and high intensity types,you can choose the brightness as your product design,we divide it into convex and flat versions,the convex head LED is super bright and flat head led is scattered light.
Circuit: SPST
Max current: 50mA
Max voltage: 12V DC
Dielectric voltage: 250V AC for 1 minute
Contact resistance: 100mΩ max (initial)
Insulation resistance: 100MΩ min
Operating force: 250 ±50gf
Total travel: 0.25 ±0.1mm
Life cycle:500,000 cycles min
Solder specifications: 260°C for 5 seconds
Function: momentary
Operating temperature: -20 to +70°C

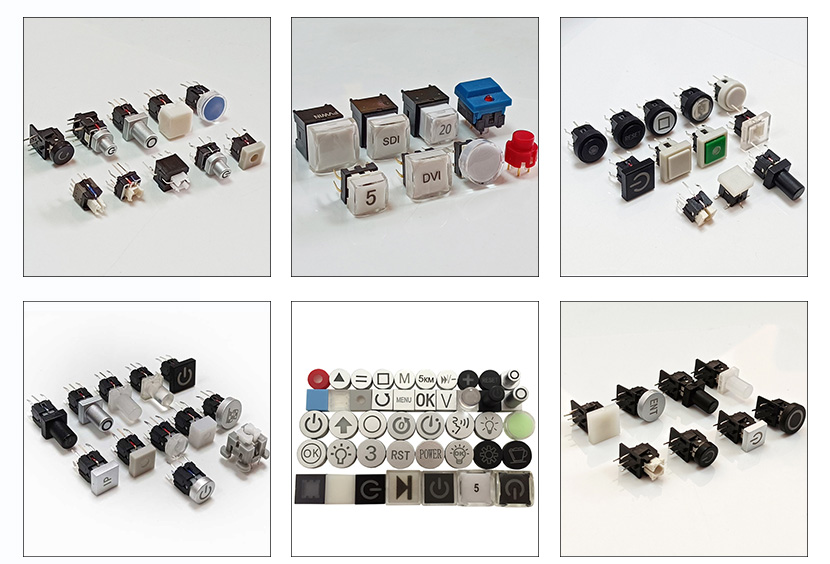

1. The variety of the product’s material: we have all kinds of the series, such as the environmental, normal one and according to the customer request can produce other material’s product.
2. With the good capacity to supply: we have own factory to automatic produce, product’s quality can be guaranteed.
3. The delivery date is very timely: our factory has very large of the scale, the quantity goes very well.
4. Allow to open the model: if the customer have special request, we can satisfy your request to produce the products.
Our company obtains the “FVWIN” trademark and the patents for our TS15 series broadcasting illuminated tact switches.
