ILLUMINATED TACT SWITCH

  • Through Hole Illuminated Micro LED Tact Switches
Through Hole Illuminated Micro LED Tact Switches

Through Hole Illuminated Micro LED Tact Switches

Through Hole Illuminated Micro LED Tact Switches

Through Hole Illuminated Micro LED Tact Switches(图1)

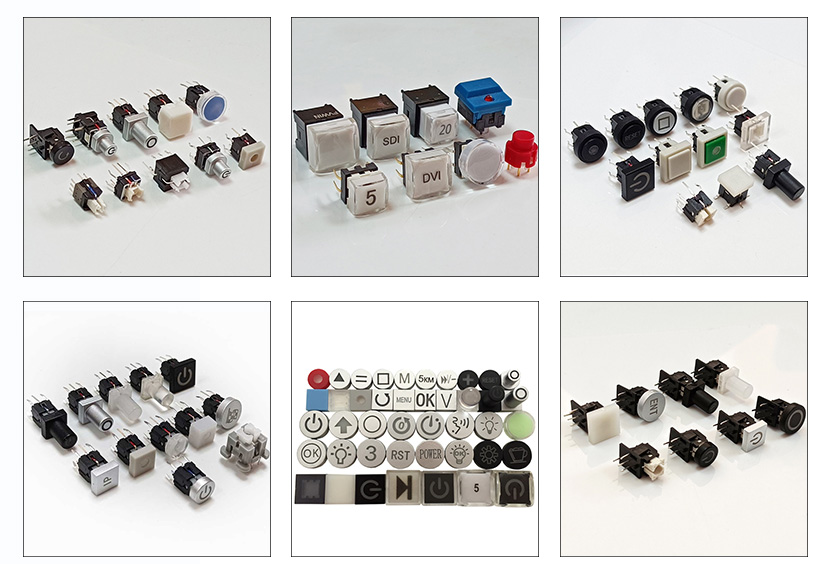

Illuminated tact switch with lighted LED,it has thru-hole, right angle and SMT terminal options with a multiple of options in cap styles, many of tact switch button are available with or no LED hole and optional frames as well as button cap. There has several LED color choices,white,red,green,blue,yellow, and bi-color LED illumination.this is miniature LED illuminated tact switch with through into design and colors led light.

Through Hole Illuminated Micro LED Tact Switches(图2)

· Electrical rating: 50 mA @ 12 VDC

· Life expectancy: 500,000 cycles

· Contact resistance: 100 mΩ max

· Insulation resistance: 100 MΩ @ 500 VDC

· Dielectric strength: 500 VAC for 1 minute

· Operating temperature: -40°C to +85°C

· Operating force: 160 gf

· Travel: 0.20 mm

· Function: SPST, off-(on), momentary

Through Hole Illuminated Micro LED Tact Switches(图3)

SPST PCB Mount Tactile Button Vertical & Horizontal with LED

Through Hole Illuminated Micro LED Tact Switches(图5)

· Audio/video

· Telecommunications

· Computer peripherals

· Consumer electronics

· Instrumentation

· Handheld devices

Through Hole Illuminated Micro LED Tact Switches(图6)

Through Hole Illuminated Micro LED Tact Switches(图7)
